CIRS 701,702,703,704,705,706劑量驗證模體，CIRS ATOM劑量驗證模體，CIRS ATOM模體

CIRS ATOM劑量驗證模體，CIRS ATOM模體是全系列擬人化的橫斷面劑量測量模型，用于研究器官劑量，全身有效劑量以及治療性放療劑量的驗證。有六種模式可供選擇：新生兒，1歲，5歲和10歲兒童模型以及成年男性和女性模型。

每個模體在設計上都是傳統的25毫米厚的部分。截面非常平坦光滑，不需要任何特殊的涂層或處理。當在偵察或投影X射線中觀察時，這導致了板之間的最小界面。ATOM系列還有別于其他劑量測量模式，為21個內部器官提供優化的TLD位置。

組織等效環氧樹脂被用于模體的所有方面。CIRS技術通過涵蓋更廣泛的能量水平（從診斷到治療）提供卓越的組織模擬劑量學驗證模型。另外，所有的骨骼都是均勻的，并且被配制成代表適合年齡的平均骨組成。CIRS骨骼配方與天然骨骼和其他類型的模擬骨骼相比具有明顯的優勢。


CIRS ATOM劑量驗證模體，CIRS ATOM模體特點和好處
模體模型涵蓋了廣泛的病人年齡
器官特定的劑量與最小的檢測器
卓越的組織仿真和逼真的成像特性
均質骨
容納各種各樣的探測器
年齡適當?shù)膮⒖?br /> 模型圖

CIRS ATOM劑量驗證模體，CIRS ATOM模體保修信息
4年保修





CIRS ATOM劑量驗證模體，CIRS ATOM模體英文介紹：
CIRS ATOM® phantoms are a full line of anthropomorphic, cross sectional dosimetry phantoms designed to investigate organ dose, whole body effective dose as well as verification of delivery of therapeutic radiation doses.

ATOM is the only line of dosimetry phantoms to range in sizes from newborn to adult. Six models are available: newborn, 1-year, 5-year and 10-year old pediatric phantoms as well as adult male and female phantoms.

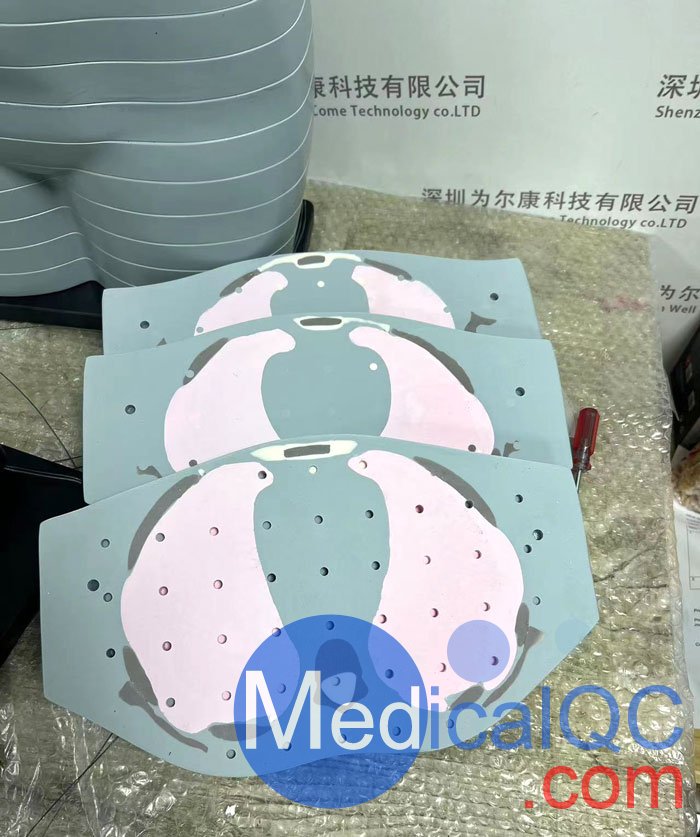

Each phantom is sectional in design with traditional 25 mm thick sections. The sectional surfaces are extremely flat and smooth and do not require any special coatings or treatment. This results in minimal interfaces between the slabs when viewed in a scout or projection X-ray. The ATOM line also differs from other dosimetry phantoms by providing optimized TLD locations specific to 21 inner organs.

Tissue-equivalent epoxy resins are used in all aspects of the phantom. CIRS technology offers superior tissue simulation Dosimetry Verification Phantoms by covering a wider range of energy levels from diagnostic to therapeutic. In addition, all bones are homogeneous and are formulated to represent age appropriate, average bone composition. CIRS bone formulations offer distinct advantages over natural skeletons and other types of simulated bone.

Phantom models cover a wide range
of patient ages

Organ specific dosimetry with minimal detectors

Superior tissue simulation and lifelike imaging properties

Homogeneous bone

Accommodates wide variety of detectors

Age appropriate references

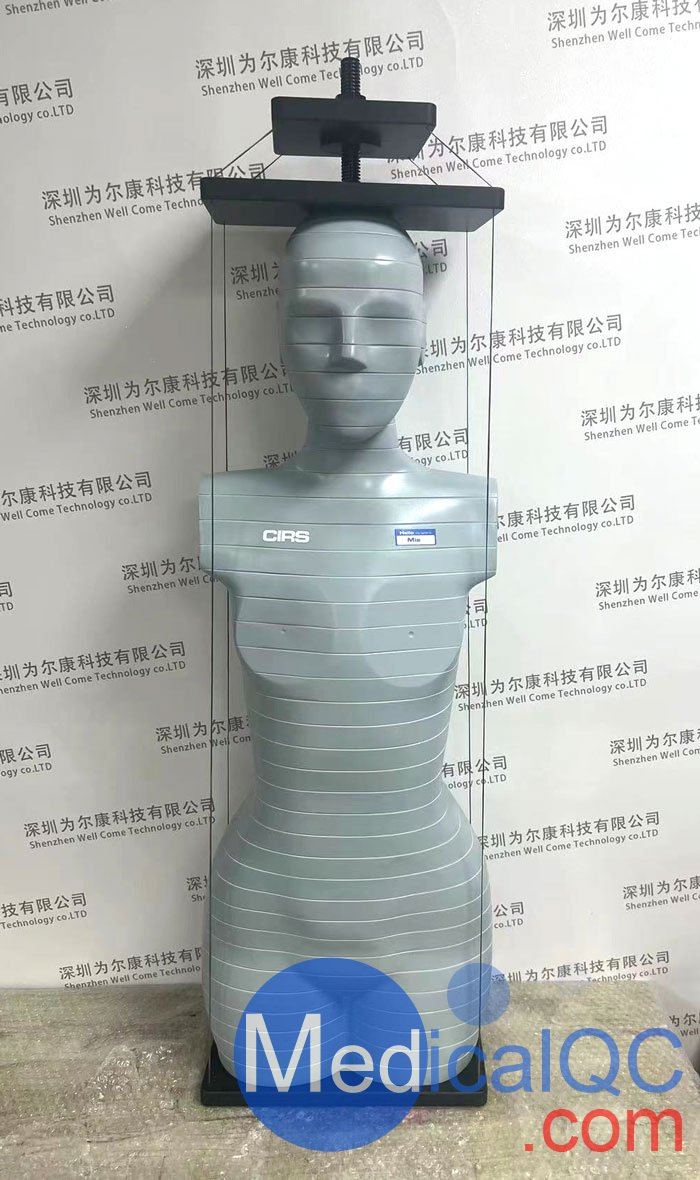

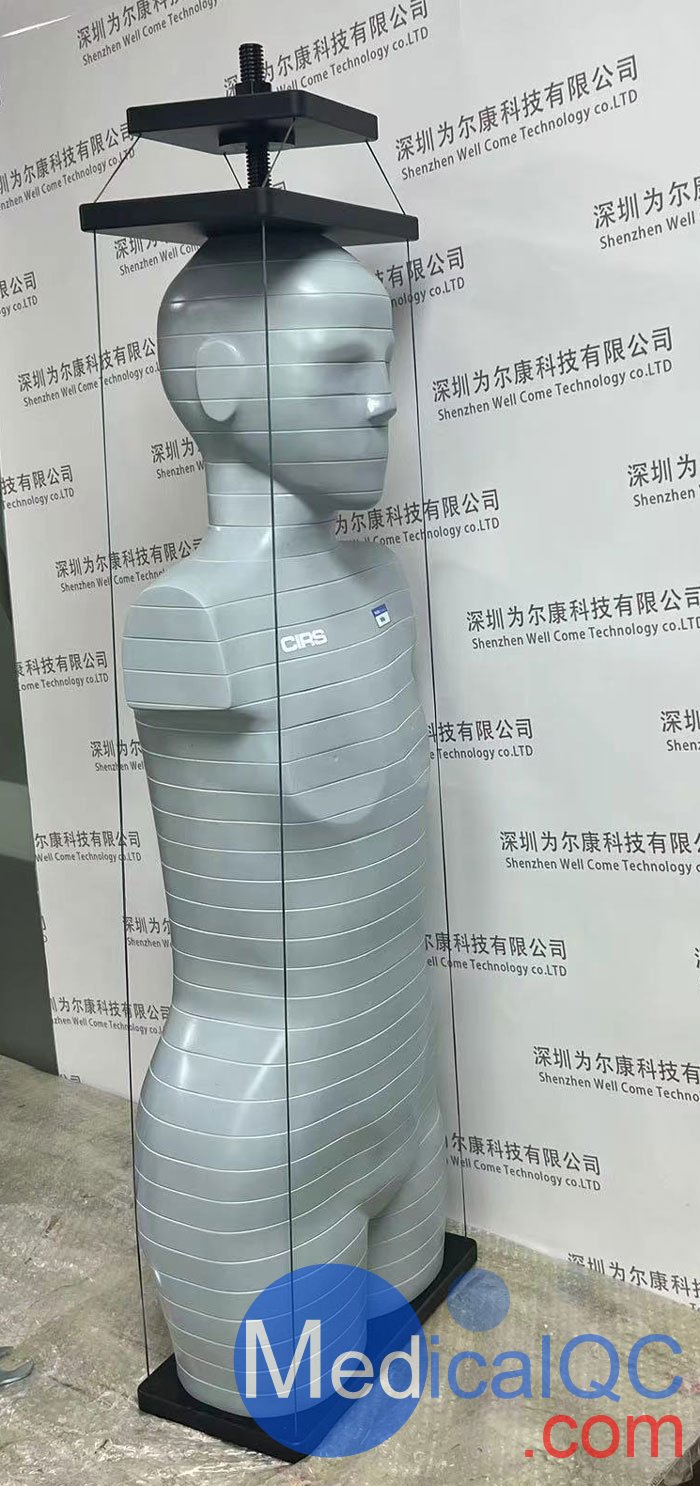

CIRS 701,702,703,704,705,706ATOM劑量驗證模體，CIRS ATOM模體產品實物圖：
