CIRS 057A 3D腹部模體,CIRS 057A腹部模體
CT /超聲波/ MRI圖像融合 - 實時掃描 - 活組織檢查培訓

CIRS 057A 3D腹部模體
CIRS 057A 3D腹部模體采用Zerdine®（1）的自我修復配方，允許以最少的針跡跟蹤進行多次活檢插入，是演示影像導航技術的理想選擇。

腹部成像對于診斷疾病和監測治療是有用的。057A型是小型成人腹部的代表，可在CT，MR和超聲下進行成像。此功能使幻像成為圖像融合研究等應用的有用工具; 成像協議的發展; 掃描技術培訓; 和系統測試，驗證和演示。

CIRS 057A 3D腹部模體使用簡化的擬人幾何模型將腹部從大約胸部椎骨（T9 / T10）模擬到腰椎（L2 / L3）。這些材料提供了在CT，MR和超聲波下的結構之間的對比。穿刺時，固體聚合物背景凝膠不會泄漏。*

CIRS 057A 3D腹部模體內部結構包括肝臟，門靜脈，兩個部分腎臟，部分肺，腹主動脈，腔靜脈，模擬脊柱和六肋骨。肝臟有六個病灶，每個腎臟有一個病灶。肌肉層和外部脂肪層包圍這些結構和塑料端蓋使幻像足夠持久的擴展掃描。

CIRS 057A 3D腹部模體包括泡沫襯里硬手提箱。為了適應圖像融合技術，CIRS可以提供??增值選項和服務，如幻像專用CMM，參考CT或MRI數據集，客戶特定注冊設備的附件以及包含特殊點標記。

CIRS 057A 3D腹部模體特征：
演示CT，超聲波和MRI掃描技術
評估圖像融合算法
測試新設備
驗證自動活檢系統
優化成像協議
改善徒手腹部活檢的表現

產品規格
外形尺寸	26厘米×12.5厘米×19厘米（10.2“×4.9”×7.5“）
幻影重量	11磅 （5公斤）
物料	外殼：ABS 外脂肪層：Z-皮膚™ 硬組織：環氧樹脂 肺：聚氨酯 等軟組織：Zerdine ®凝膠
內部器官	肝臟6個病變（2各自小，中，大） （2）腎臟（1個介質病變各） （1）脊柱 （1）偏肺 （1）門靜脈 （1）腔靜脈 （1）主動脈 （6）的肋 周圍軟組織（2大病變）
型號057A包括	三重模態3D腹部幻影 用戶指南 6個月保修
可選功能	型號035： CT DICOM數據組（特定序列號，120 kpv的切片厚度為1.5 mm）

CT/ ULTRASOUND/ MRI IMAGE FUSION• LIVE SCANNING• BIOPSY TRAINING

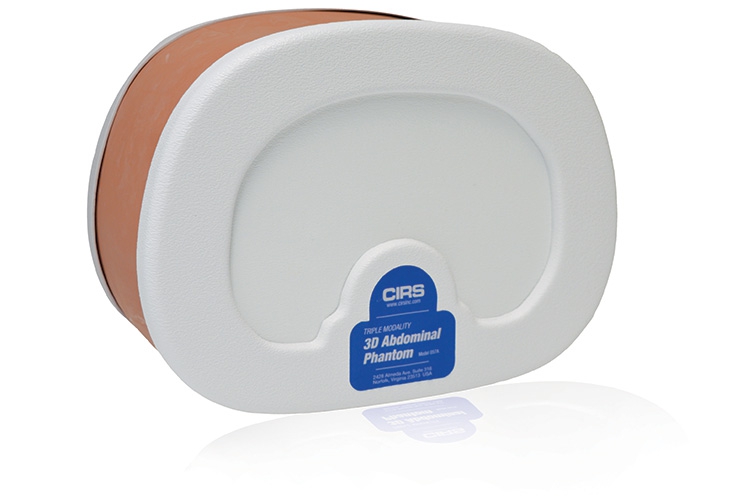

The CIRS Triple Modality 3D Abdominal Phantom is constructed of a self-healing formulation of Zerdine®(1) that allows multiple biopsy insertions with minimal needle tracking, and is ideal for demonstrating image-guided navigation technologies.
Abdominal imaging is useful for diagnosing disease and monitor-ing treatments. The Model 057A is representative of a small adult abdomen and can be imaged under CT, MR and ultrasound.  This feature makes the phantom a useful tool for applications such as image fusion studies; imaging protocol developments; scan technique training; and system testing, validation and demonstration.
The Model 057A simulates the abdomen from approximately the thorax vertebrae (T9/T10) to the lumbar vertebrae (L2/L3) using simplified anthropomorphic geometry. The materials provide con-trast between the structures under CT, MR and ultrasound. The solid polymer background gel will not leak when punctured.*
Internal structures include the liver, the portal vein, two partial kidneys, a partial lung, the abdominal aorta, the vena cava, a simulated spine and six ribs. The liver has six lesions and the kidneys each have one lesion. A muscle layer and outside fat layer surround these structures and plastic end caps make the phantom durable enough for extended scanning. Blood vessels

have CT contrast added to provide enhanced auto registration in image fusion applications
The phantom includes a foam lined hard carry case. For users interested in image fusion studies, the phantom can be pur-chased as a kit to include a serial-number specific CT DICOM Data set for reference. CIRS can also offer value-added options and services such as phantom specific CMM, reference CT
or MRI data sets, attachment of customer specific registration devices and inclusion of special point markers.

Features

•    Demonstrate CT, ultrasound and MRI scan techniques
•    Assess image-fusion algorithms
•    Test new equipment
•    Optimize imaging protocols
•    Improve performance of freehand abdominal biopsies
